INKEL Corporation

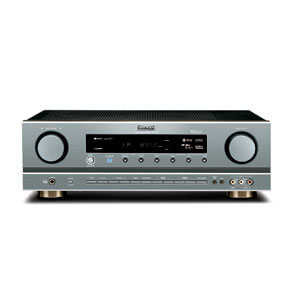

7.1 CH A/V Surround Receiver
with HDMI Repeater

R-772

.4 A/V & 3 Audio Input
..- Front Panel A/ V Input
....(Including S-Video and Optical In)
..- 2 Component Video Inputs & 1 Output
....(HDTV Compatible)

.Assignable 4 Digital Inputs
....(2 Optical & 2 Coaxial) & Digital Output

.Color-coded Terminals

.Headphone Output Jack

.12V DC Trigger Output

.IR Input Jack on the Rear Panel

.Dimensions (W x H x D) : 440 x 141 x 330mm

.Weight (Net) : 10.0kg

.Dolby/DTS Audio Decoding
...- DTS-ES (Discrete/ Matrix)
...- DTS 96/ 24
...- DTS Neo : 6 (Cinema/ Music)
...- Dolby Digital EX
...- Dolby Headphone ver.2
...- Dolby Virtual Speaker ver.2 (2/3/4/ 5 Speaker Layout)
...- Dolby Pro Logic IIx (Movie, Music)

.10 DSP Modes (Theater, Movie, Hall, Stadium, Church,Arena, Club, Game, Multi Stereo Movie /Music)

.Digital Audio Remastering for Greater Detail & Clarity

.A/ V Sync

.One touch Automatic Speaker Setup

.Automatic Room EQ

.192kHz/24bit D/A Converter (All Channels)

.7.1 Channel Analog Input

.Subwoofer Preamp Output

.2 HDMI Inputs & 1 Output (ver. 1.3)

.Advanced Multi Room Function
...- Dedicated Remote Controller
...- A/ V Output & Speaker Output

.OSD (On-Screen Display)

.Pre-programmed Universal Remote Control
